产品特点
1、产品用途：适用于带内螺纹的孔、管、气缸等部件，起防尘、防漏、密封及保护内部结构的作用
2、性能：优质橡胶材质，弹性与密封性佳，紧密贴合内螺纹，安装便捷，可轻松取放
3、环保可重复使用，安装使用无环境污染，有效保障设备等相关物品品质
4、颜色：红色，可按需定制其他颜色

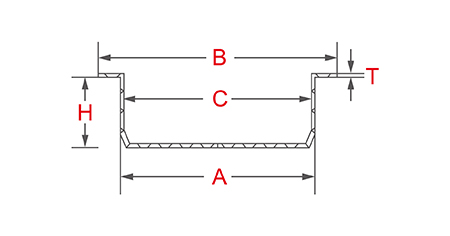

产品规格
| 产品编码 | 匹配公制 螺纹 |
尺寸（mm） | ||||
|---|---|---|---|---|---|---|
| A | B | H | C | T | ||
| HZ001 | M4 | 3.2 | 5.4 | 4 | 2.2 | 0.9 |
| HZ002 | M5 | 4.16 | 5 | 3.9 | 2.4 | 1 |
| HZ003 | M6 | 5.3 | 8.5 | 6 | 3.5 | 1.5 |
| HZ004 | M7 | 6.9 | 10.5 | 7.2 | 5 | 1 |
| HZ005 | M8 | 7.1 | 11.6 | 6.5 | 4.5 | 1.5 |
| HZ006 | M10 | 8.9 | 11.4 | 6.2 | 6.8 | 0.8 |
| HZ007 | M11 | 9.9 | 14 | 9 | 7.8 | 1 |
| HZ008 | M12 | 10.8 | 14.5 | 8.5 | 8 | 1 |
| HZ009 | M14 | 13 | 17 | 9.5 | 11 | 1 |
| HZ010 | M15 | 13.8 | 16.6 | 10.4 | 11 | 1.1 |
| HZ011 | M16 | 14.8 | 18.5 | 10 | 13.8 | 1 |
| HZ012 | M18 | 17 | 21 | 11 | 15.5 | 1 |
| HZ013 | M19 | 17.5 | 21.5 | 11.5 | 15 | 1.1 |
| HZ014 | M20 | 19.1 | 23.8 | 12 | 17 | 1 |
| HZ015 | M22 | 20.7 | 26 | 11 | 17 | 1.3 |
| HZ016 | M24 | 22.5 | 28 | 11.5 | 20 | 1.2 |
| HZ017 | M26 | 24.5 | 28.7 | 10 | 22 | 1 |
| HZ018 | M27 | 25.7 | 30 | 11 | 22.5 | 1.5 |
| HZ019 | M29 | 27.5 | 33.4 | 10.5 | 23.6 | 1.3 |
| HZ020 | M30 | 28.3 | 34 | 12 | 25 | 1.3 |
| HZ021 | M33 | 31 | 37 | 11 | 29 | 0.85 |
| HZ022 | M34 | 32.5 | 37 | 11 | 29 | 0.85 |
| HZ023 | M36 | 34.5 | 38 | 12.2 | 28 | 1.2 |
| HZ024 | M38 | 36.5 | 43 | 13 | 35 | 1.5 |
| HZ025 | M39 | 37.5 | 43.5 | 12 | 33.6 | 1.2 |
| HZ026 | M42 | 40.5 | 46 | 14 | 36.7 | 1.5 |
| HZ027 | M45 | 43.5 | 51 | 13 | 39 | 1.5 |
| HZ028 | M48 | 45.8 | 54 | 13 | 42 | 1.8 |
| HZ029 | M52 | 51 | 63 | 20 | 47 | 1.6 |
| HZ030 | M54 | 53 | 61 | 12 | 51 | 1.5 |
| HZ031 | M60 | 59 | 69 | 57 | 13 | 1.6 |
| HZ032 | M62 | 60 | 66 | 14 | 57.5 | 1.8 |
| 产品编码 | 匹配光孔 螺纹 |
尺寸（mm） | ||||
|---|---|---|---|---|---|---|
| A | B | H | C | T | ||
| HZ033 | φ3 | 3.2 | 5.4 | 4 | 2.2 | 0.9 |
| HZ034 | φ4 | 4.16 | 5 | 3.9 | 2.4 | 1 |
| HZ035 | φ4.5 | 4.8 | 7.7 | 7 | 2.5 | 1 |
| HZ036 | φ5 | 5.3 | 8.5 | 6 | 3.5 | 1.5 |
| HZ037 | φ5.5 | 5.6 | 9.5 | 6.8 | 4.2 | 1 |
| HZ038 | φ6.0 | 6.35 | 9 | 7 | 2.5 | 1.4 |
| HZ039 | φ6.5 | 6.6 | 10.5 | 7.2 | 5 | 1 |
| HZ040 | φ7 | 7.1 | 11.6 | 6.5 | 4.5 | 1.5 |
| HZ041 | φ7.5 | 7.8 | 11.5 | 8 | 6.25 | 1 |
| HZ042 | φ8.0 | 8.3 | 10.8 | 6.5 | 6.8 | 1 |
| HZ043 | φ9.0 | 8.9 | 11.4 | 6.2 | 6.8 | 0.8 |
| HZ044 | φ9.5 | 9.9 | 14 | 9 | 7.8 | 1 |
| HZ045 | φ11 | 11.3 | 14 | 9.2 | 9.4 | 0.9 |
| HZ046 | φ14 | 13.8 | 18 | 9 | 12 | 1 |
| HZ047 | φ17.5 | 17.5 | 21.5 | 11.5 | 15 | 1.1 |
| HZ048 | φ30 | 30.5 | 37 | 11 | 29 | 0.85 |
| HZ049 | φ32 | 32.5 | 37 | 11 | 29 | 0.85 |
| HZ050 | φ34 | 34.5 | 38 | 12.2 | 28 | 1.2 |
| HZ051 | φ36 | 36.5 | 43 | 13 | 35 | 1.5 |
| HZ052 | φ42 | 43.5 | 51 | 13 | 39 | 1.5 |
| HZ053 | φ50 | 51 | 63 | 20 | 47 | 1.6 |
| HZ054 | φ52 | 52 | 69 | 13 | 57 | 1.6 |
| HZ055 | φ55 | 55 | 65 | 18 | 52 | 1.7 |
| HZ056 | φ60 | 60 | 66 | 14 | 57.5 | 1.8 |
| 产品编码 | 匹配英制 螺纹 |
尺寸（mm） | ||||
|---|---|---|---|---|---|---|
| A | B | H | C | T | ||
| HZ057 | G1/8 | 8.9 | 11.4 | 6.2 | 6.8 | 0.8 |
| HZ058 | G1/4 | 11.8 | 14 | 9.2 | 9.4 | 0.9 |
| HZ059 | G3/8 | 15.5 | 18.5 | 10 | 13.8 | 1 |
| HZ060 | G1/2 | 19.1 | 23.8 | 12 | 17 | 1 |
| HZ061 | G3/4 | 24.5 | 28.7 | 22 | 22 | 1 |
| HZ062 | G1" | 31 | 37 | 11 | 29 | 0.85 |
| HZ063 | G1-1/8 | 36.5 | 43 | 13 | 35 | 1.5 |
| HZ064 | G1-1/4 | 40.5 | 46 | 14 | 36.7 | 1.5 |
| HZ065 | G1-1/2 | 45.8 | 54 | 13 | 42 | 1.8 |
| HZ066 | G2" | 59 | 69 | 13 | 57 | 1.6 |
