机轴保护套
Driveshaft Protection Caps
黄色LDPE
配用DIN 748,IEC 600-72和 ISO R775标准机轴
机轴的保护和遮蔽,也可用于配有轴承的机轴

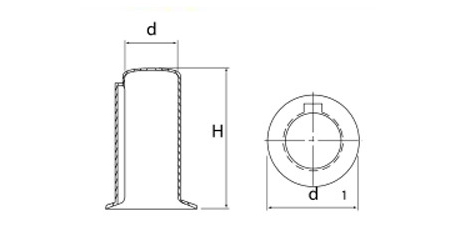

编号 | 配用机轴直径D(mm) | d1(mm) | H(mm) |
HJZT001 | 9.0 | 14.5 | 25.0 |
HJZT002 | 10.0 | 16.0 | 30.0 |
HJZT003 | 11.0 | 17.5 | 30.0 |
HJZT004 | 14.0 | 22.5 | 35.0 |
HJZT005 | 15.0 | 25.5 | 35.0 |
HJZT006 | 16.0 | 25.5 | 50.0 |
HJZT007 | 19.0 | 30.5 | 50.0 |
HJZT008 | 20.0 | 32.0 | 60.0 |
HJZT009 | 22.0 | 35.5 | 60.0 |
HJZT010 | 24.0 | 38.5 | 60.0 |
HJZT011 | 25.0 | 40.0 | 70.0 |
HJZT012 | 28.0 | 45.0 | 70.0 |
HJZT013 | 30.0 | 48.0 | 95.0 |
HJZT014 | 32.0 | 51.0 | 95.0 |
HJZT015 | 35.0 | 56.0 | 95.0 |
HJZT016 | 38.0 | 61.0 | 95.0 |
HJZT017 | 42.0 | 67.0 | 130.0 |
HJZT018 | 45.0 | 72.0 | 130.0 |
HJZT019 | 48.0 | 77.0 | 130.0 |
HJZT020 | 55.0 | 88.0 | 130.0 |
HJZT021 | 60.0 | 96.0 | 165.0 |
HJZT022 | 65.0 | 104.0 | 165.0 |
HJZT023 | 70.0 | 108.0 | 165.0 |
HJZT024 | 75.0 | 112.0 | 165.0 |
