产品规格
名称：鼓形塞
材质：低密度聚乙烯(LDPE)
颜色：本色/黑色
产品用途：鼓形塞可以作保护塞也可作帽，用于液压管件，电气设备保护。

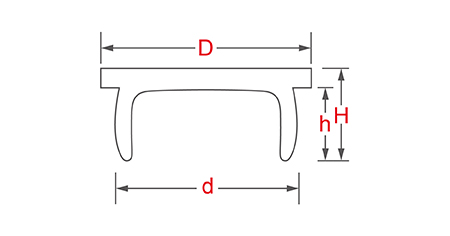

| 编号 | d（mm） | D（mm） | h（mm） | H（mm） |
| HGXS1 | 2.1 | 3.5 | 7 | - |
| HGXS2 | 3.3 | 12 | 6 | 7.7 |
| HGXS3 | 4.4 | 9 | 5.2 | 6.5 |
| HGXS4 | 4.6 | 7 | 5 | 6.2 |
| HGXS5 | 5.1 | 11 | 6 | 8 |
| HGXS6 | 5.4 | 12 | 7.5 | 9.5 |
| HGXS7 | 6.3 | 9.6 | 4 | 5.1 |
| HGXS8 | 6.6 | 7.5 | 5 | - |
| HGXS9 | 7.3 | 14 | 6 | 8 |
| HGXS10 | 8.4 | 14 | 6 | 8 |
| HGXS11 | 8.8 | 11.5 | 8 | 9.5 |
| HGXS12 | 9.3 | 12 | 9 | 11.5 |
| HGXS13 | 9.3 | 14 | 4.5 | 6.5 |
| HGXS14 | 9.3 | 16 | 6.8 | 8.3 |
| HGXS15 | 10 | 12 | 4 | 5.7 |
| HGXS16 | 10 | 15 | 9 | 11.2 |
| HGXS17 | 10.7 | 14 | 6 | 8.2 |
| HGXS18 | 10.7 | 14.8 | 9 | 11.4 |
| HGXS19 | 11.3 | 14.4 | 5.5 | 9.5 |
| HGXS20 | 11.9 | 16 | 7 | 9 |
| HGXS21 | 12.8 | 20 | 7.8 | 10.3 |
| HGXS22 | 13.3 | 18.7 | 7 | 9 |
| HGXS23 | 13.7 | 20 | 8 | 10 |
| HGXS24 | 14 | 18.7 | 7 | 9 |
| HGXS25 | 14.5 | 20 | 5.5 | 7.5 |
| HGXS26 | 14.9 | 18.5 | 9 | 11.7 |
| HGXS27 | 15 | 18.7 | 7 | 9 |
| HGXS28 | 15.6 | 20 | 8 | 10 |
| HGXS29 | 16.5 | 18.7 | 7 | 9 |
| HGXS30 | 17 | 22 | 8.2 | 10.8 |
| HGXS31 | 17.8 | 24.6 | 9 | 11.3 |
| HGXS32 | 18.4 | 25 | 8 | 10.5 |
| HGXS33 | 18.8 | 21.5 | 9 | 12 |
| HGXS34 | 19.3 | 25 | 8 | 11 |
| HGXS35 | 19.5 | 24.6 | 9 | 11.1 |
| HGXS36 | 20.1 | 24.6 | 9 | 11.1 |
| HGXS37 | 20.5 | 25.2 | 9 | 12 |
| HGXS38 | 20.5 | 30 | 10.7 | 13.2 |
| HGXS39 | 21 | 25.6 | 12.6 | 15.6 |
| HGXS40 | 21.2 | 25 | 7.5 | 9.5 |
| HGXS41 | 21.7 | 25 | 8 | 10.5 |
| HGXS42 | 22.4 | 28 | 9 | 12 |
| HGXS43 | 23 | 27.4 | 19.3 | 20.8 |
| HGXS44 | 23.4 | 28 | 9 | 12 |
| HGXS45 | 24 | 27 | 12.8 | 14.4 |
| HGXS46 | 24.6 | 28 | 9 | 12 |
| HGXS47 | 24.8 | 31.5 | 6 | 8.2 |
| HGXS48 | 25 | 32 | 13 | 16.2 |
| HGXS49 | 25.5 | 28 | 7.5 | 9.5 |
| HGXS50 | 26.5 | 28 | 9 | 12 |
| HGXS51 | 27 | 29.6 | 15 | 16.4 |
| HGXS52 | 27.5 | 34.8 | 12 | 14.5 |
| HGXS53 | 28.6 | 34 | 15 | 18.8 |
| HGXS54 | 29 | 36 | 12 | 15 |
| HGXS55 | 30.5 | 36 | 12 | 15 |
| HGXS56 | 31.8 | 36 | 10 | 12.5 |
| HGXS57 | 32.6 | 34.8 | 12 | 14.5 |
| HGXS58 | 33.5 | 36 | 12 | 15 |
| HGXS59 | 33.5 | 41 | 12 | 14.8 |
| HGXS60 | 34.8 | 42 | 15 | 18 |
| HGXS61 | 35.5 | 46.5 | 15 | 19.5 |
| HGXS62 | 36.5 | 42 | 15 | 18 |
| HGXS63 | 37.6 | 40.4 | 12 | 14.5 |
| HGXS64 | 38.4 | 42 | 15 | 18 |
| HGXS65 | 39 | 49.3 | 16 | 18.9 |
| HGXS66 | 40.6 | 44 | 15 | 18 |
| HGXS67 | 42.3 | 48 | 15 | 18 |
| HGXS68 | 43.3 | 50.5 | 15 | 18 |
| HGXS69 | 46 | 55 | 18 | 21 |
| HGXS70 | 50.5 | 57 | 14 | 19.4 |
| HGXS71 | 51.5 | 55 | 18 | 21 |
| HGXS72 | 52.5 | 60 | 14 | 17.5 |
| HGXS73 | 54.1 | 58.7 | 18 | 21 |
| HGXS74 | 55.3 | 59.5 | 19.5 | 23 |
| HGXS75 | 58 | 64 | 18 | 21 |
| HGXS76 | 59.6 | 73.5 | 18 | 21 |
| HGXS77 | 70 | 78 | 18 | 21.5 |
| HGXS78 | 73.7 | 82.3 | 17.4 | 20.4 |
| HGXS79 | 80.8 | 92.5 | 17.4 | 20.4 |
| HGXS80 | 85 | 93.5 | 18 | 19.7 |
| HGXS81 | 86.5 | 99.3 | 17.4 | 20.4 |
| HGXS82 | 98.8 | 112 | 17.4 | 20.4 |
| HGXS83 | 110.5 | 130 | 18 | 21.5 |
| HGXS84 | 111.7 | 123 | 17.4 | 20.4 |
产品特点
1、美观耐用，做工精细，表面皮纹处理更美观，鼓形防滑贴合稳固，材质耐磨性强，韧性好，不易破碎。
2、实用性好，加厚端面能起到很好的防护作用，安装便捷，轻压即可推入，适配管材端口、工艺孔等场景。
3、广泛应用于金属围栏、工业管材、设备孔位防护等场景。
4、规格齐全可定制，适配多种管材内径。
5、环保材质，安装使用对环境无污染，能提升目标产品的整体品质与防护性能。

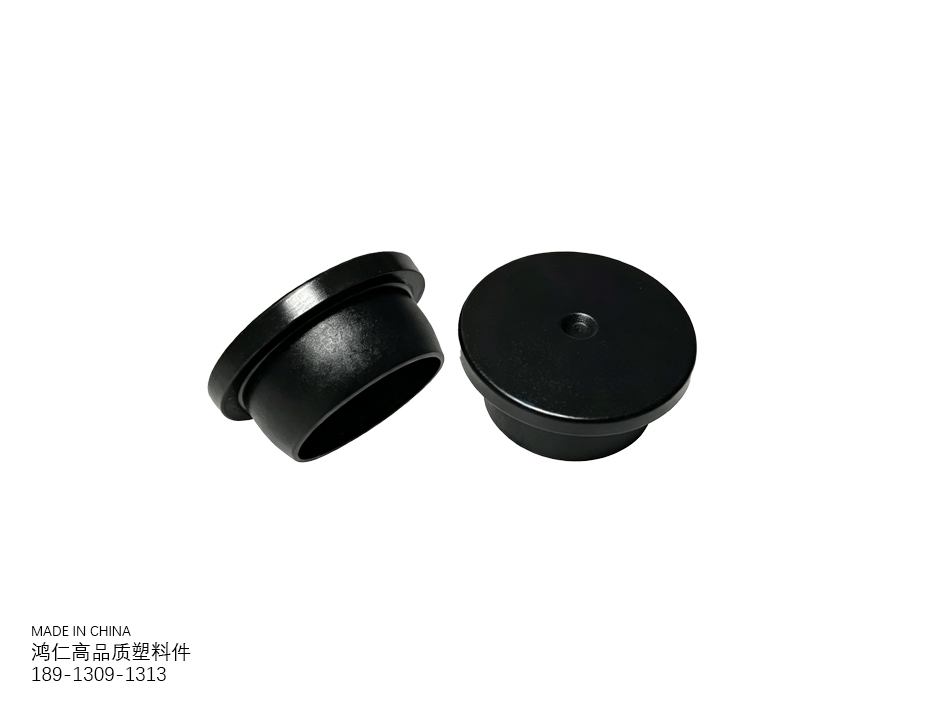

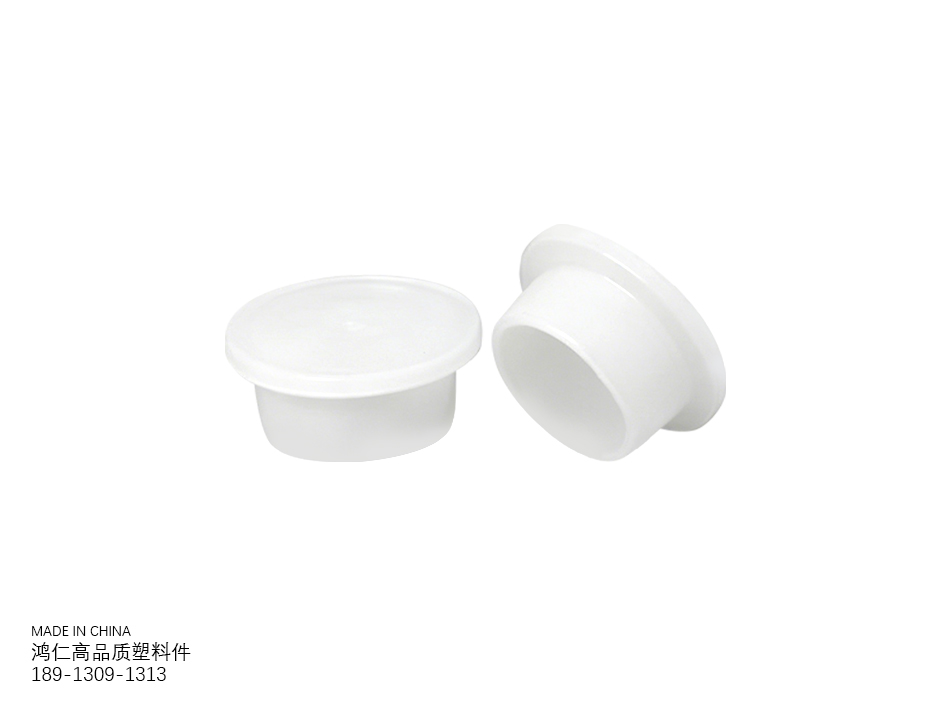

产品详细图
